本文将通过一个实际示例，演示如何通过 Hyperlane 协议发送跨链消息 。

你将学习如何：

• 部署与 Hyperlane Mailbox 兼容的合约

• 部署可信中继器 ISM ( 跨链安全模块 )

• 运行一个简单的中继器

• 发送跨链消息

示例概览

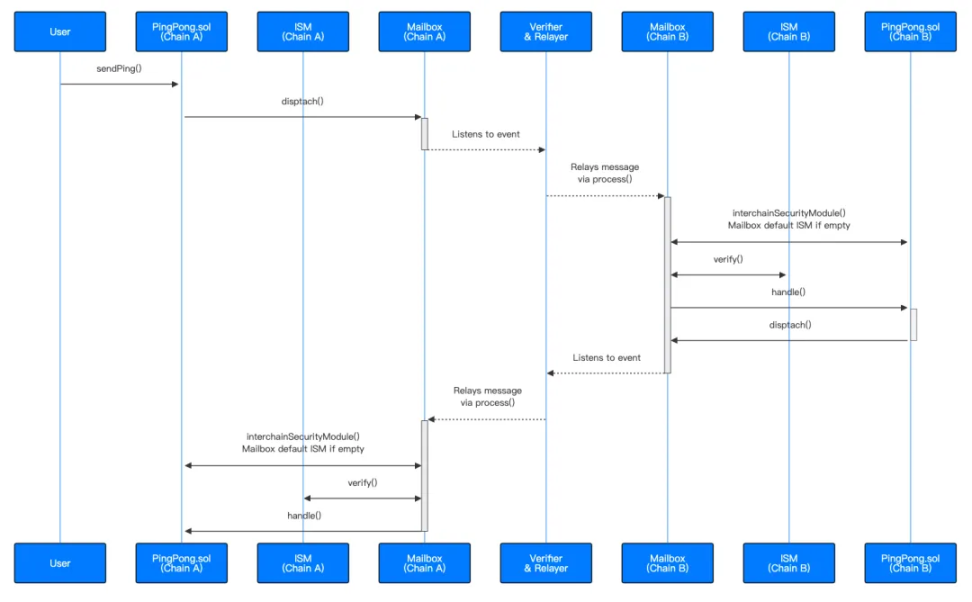

在此示例中，您将在两个不同的链上部署类似的合约。链 A 上的合约将使用 Hyperlane 协议 向链 B 发送一条消息，链 B 上的合约将处理此消息并回复链 A。

合约主要功能：

• sendPing：通过调用 Hyperlane 的方法 来发起跨链消息 IMailbox.dispatch。

• enrollRemoteRouter：在继承的 Router 合约中，注册来自另一条链的合约。

• setInterchainSecurityModule：设置合同的 ISM。

• _handle：处理来自邮箱的传入消息（继承的 Router 合约 handle 函数调用的内部函数）。

开发环境准备

1. 创建并导航到新目录：

mkdir hyperlane-pingpong && cd hyperlane-pingpong

2. 初始化 Hardhat 项目并安装依赖项：

npx hardhat init

3. 添加@hyperlane-xyz/core 为依赖项：

npm install -D @hyperlane-xyz/core

测试代币

确保你有足够的测试令牌 Arbitrum Sepolia，并且 Sapphire Testnet

获取更多信息：

• Sapphire Testnet 来自 Oasis Faucet 的测试代币。

• Arbitrum Sepolia 来自 Alchemy 的 Faucet 的 ETH 代币。

将网络添加到 Hardhat

打开 hardhat.config.ts 并添加 Arbitrum Sepolia 和 Sapphire 测试网。

hardhat.config.ts

 import { HardhatUserConfig } from"hardhat/config";

import"@nomicfoundation/hardhat-toolbox";

const accounts = process.env.PRIVATE_KEY ? [process.env.PRIVATE_KEY] : [];

constconfig: HardhatUserConfig = {

solidity: "0.8.24",

networks: {

    'arbitrum-sepolia': {

      url: 'https://arbitrum-sepolia-rpc.publicnode.com',

      chainId: 421614,

      accounts,

    },

    'sapphire-testnet': {

      url: "https://testnet.sapphire.oasis.io",

      accounts,

      chainId: 23295, // 0x5aff

    },

  },

 };

exportdefault config;

乒乓球合约

在此示例中，我们利用了 HyperlaneRouter 中的包装器。这具有以下优势：

• 合约与 Hyperlane 的 MailboxClient 和 IMessageRecipient 接口兼容 。

• 支持注册其他链的路由器。

• 支持设置自定义 ISM。

1. Ping.sol 创建一个名为 Arbitrum Sepolia 的新文件

2. 将以下合同粘贴到其中：

// SPDX-License-Identifier: Apache-2.0

pragma solidity ^0.8.13;

// ============ External Imports ============

import {Router} from"@hyperlane-xyz/core/contracts/client/Router.sol";

/*

* @title Ping

* @dev You can use this simple app as a starting point for your own application.

*/

contract Ping is Router {

    // A generous upper bound on the amount of gas to use in the handle

    // function when a message is processed. Used for paying for gas.

    uint256 public constant HANDLE_GAS_AMOUNT = 50_000;

    // A counter of how many messages have been sent from this contract.

    uint256 public sent;

    // A counter of how many messages have been received by this contract.

    uint256 public received;

    // Keyed by domain, a counter of how many messages that have been sent

    // from this contract to the domain.

    mapping(uint32 => uint256) public sentTo;

    // Keyed by domain, a counter of how many messages that have been received

    // by this contract from the domain.

    mapping(uint32 => uint256) public receivedFrom;

    // ============ Events ============

    event SentPing(

        uint32 indexed origin,

        uint32 indexed destination,

        string message

    );

    event ReceivedPing(

        uint32 indexed origin,

        uint32 indexed destination,

        bytes32 sender,

        string message

    );

    event HandleGasAmountSet(

        uint32 indexed destination,

        uint256 handleGasAmount

    );

    constructor(address _mailbox) Router(_mailbox) {

        // Transfer ownership of the contract to deployer

        _transferOwnership(msg.sender);

        setHook(address(0));

    }

    // ============ External functions ============

    /**

     * @notice Sends a message to the _destinationDomain. Any msg.value is

     * used as interchain gas payment.

     * @param _destinationDomain The destination domain to send the message to.

     * @param _message The message to send.

     */

    functionsendPing(

        uint32 _destinationDomain,

        string calldata _message

    ) public payable {

        sent += 1;

        sentTo[_destinationDomain] += 1;

        _dispatch(_destinationDomain, bytes(_message));

        emit SentPing(

            mailbox.localDomain(),

            _destinationDomain,

            _message

        );

    }

    /**

     * @notice Fetches the amount of gas that will be used when a message is

     * dispatched to the given domain.

     */

    functionquoteDispatch(

        uint32 _destinationDomain,

        bytes calldata _message

    ) external view returns (uint256) {

        return_quoteDispatch(_destinationDomain, _message);

    }

    // ============ Internal functions ============

    /**

     * @notice Handles a message from a remote router.

     * @dev Only called for messages sent from a remote router, as enforced by Router.sol.

     * @param _origin The domain of the origin of the message.

     * @param _sender The sender of the message.

     * @param _message The message body.

     */

    function_handle(

        uint32 _origin,

        bytes32 _sender,

        bytes calldata _message

    ) internal override {

        received += 1;

        receivedFrom[_origin] += 1;

        emit ReceivedPing(

            _origin,

            mailbox.localDomain(),

            _sender,

            string(_message)

        );

    }

}

3. Pong.sol 创建一个名为 Sapphire Testnet 的新文件

4. 将以下合同粘贴到其中：

// SPDX-License-Identifier: Apache-2.0

pragma solidity ^0.8.13;

// ============ External Imports ============

import {Router} from"@hyperlane-xyz/core/contracts/client/Router.sol";

/*

* @title Pong

* @dev You can use this simple app as a starting point for your own application.

*/

contract Pong is Router {

    // A generous upper bound on the amount of gas to use in the handle

    // function when a message is processed. Used for paying for gas.

    uint256 public constant HANDLE_GAS_AMOUNT = 50_000;

    // A counter of how many messages have been sent from this contract.

    uint256 public sent;

    // A counter of how many messages have been received by this contract.

    uint256 public received;

    // Keyed by domain, a counter of how many messages that have been sent

    // from this contract to the domain.

    mapping(uint32 => uint256) public sentTo;

    // Keyed by domain, a counter of how many messages that have been received

    // by this contract from the domain.

    mapping(uint32 => uint256) public receivedFrom;

    // ============ Events ============

    event SentPing(

        uint32 indexed origin,

        uint32 indexed destination,

        string message

    );

    event ReceivedPing(

        uint32 indexed origin,

        uint32 indexed destination,

        bytes32 sender,

        string message

    );

    event HandleGasAmountSet(

        uint32 indexed destination,

        uint256 handleGasAmount

    );

    constructor(address _mailbox) Router(_mailbox) {

        // Transfer ownership of the contract to deployer

        _transferOwnership(msg.sender);

        setHook(address(0));

    }

    // ============ External functions ============

    /**

     * @notice Sends a message to the _destinationDomain. Any msg.value is

     * used as interchain gas payment.

     * @param _destinationDomain The destination domain to send the message to.

     * @param _message The message to send.

     */

    functionsendPing(

        uint32 _destinationDomain,

        string calldata _message

    ) public payable {

        sent += 1;

        sentTo[_destinationDomain] += 1;

        _dispatch(_destinationDomain, bytes(_message));

        emit SentPing(

            mailbox.localDomain(),

            _destinationDomain,

            _message

        );

    }

    /**

     * @notice Fetches the amount of gas that will be used when a message is

     * dispatched to the given domain.

     */

    functionquoteDispatch(

        uint32 _destinationDomain,

        bytes calldata _message

    ) external view returns (uint256) {

        return_quoteDispatch(_destinationDomain, _message);

    }

    // ============ Internal functions ============

    /**

     * @notice Handles a message from a remote router.

     * @dev Only called for messages sent from a remote router, as enforced by Router.sol.

     * @param _origin The domain of the origin of the message.

     * @param _sender The sender of the message.

     * @param _message The message body.

     */

    function_handle(

        uint32 _origin,

        bytes32 _sender,

        bytes calldata _message

    ) internal override {

        received += 1;

        receivedFrom[_origin] += 1;

        emit ReceivedPing(

            _origin,

            mailbox.localDomain(),

            _sender,

            string(_message)

        );

        // send return message

        sendPing(

            _origin,

            string(_message)

        );

    }

}

ISM 合同

在当前状态下，如果您从 Sapphire Testnet 向 Arbitrum Sepolia 发送消息，邮箱的默认 ISM 将不会接受该消息。您可以在 Arbitrum Sepolia 上部署和注册自定义 ISM 以使其正常工作。

Hyperlane 的一个简单默认 ISM 是 TrustedRelayerISM，它在传递消息之前检查中继器地址。

1. 创建一个名为 TrustedRelayerIsm.sol

2. 将以下合同粘贴到其中：

// SPDX-License-Identifier: MIT OR Apache-2.0

pragma solidity >=0.8.0;

// ============ Internal Imports ============

import {IInterchainSecurityModule} from"@hyperlane-xyz/core/contracts/interfaces/IInterchainSecurityModule.sol";

import {Address} from"@openzeppelin/contracts/utils/Address.sol";

import {Message} from"@hyperlane-xyz/core/contracts/libs/Message.sol";

import {Mailbox} from"@hyperlane-xyz/core/contracts/Mailbox.sol";

import {PackageVersioned} from"@hyperlane-xyz/core/contracts/PackageVersioned.sol";

contract TrustedRelayerIsm is IInterchainSecurityModule, PackageVersioned {

    usingMessagefor bytes;

    uint8 public immutable moduleType = uint8(Types.NULL);

    Mailboxpublic immutable mailbox;

    address public immutable trustedRelayer;

    constructor(address _mailbox, address _trustedRelayer) {

        require(

            _trustedRelayer != address(0),

            "TrustedRelayerIsm: invalid relayer"

        );

        require(

            Address.isContract(_mailbox),

            "TrustedRelayerIsm: invalid mailbox"

        );

        mailbox = Mailbox(_mailbox);

        trustedRelayer = _trustedRelayer;

    }

    functionverify(

        bytes calldata,

        bytes calldata message

    ) external view returns (bool) {

        return mailbox.processor(message.id()) == trustedRelayer;

    }

}

部署合约

分别在 Sapphire Testnet 和 Arbitrum Sepolia 两个不同的链上部署 Ping 和 Pong 合约。

将 Pong 部署到 Sapphire Testnet

1. deploypong.ts 在以下位置创建部署脚本 scripts/：

import { ethers } from"hardhat";

asyncfunctionmain() {

// deployed mailbox on Sapphire Testnet

const mailbox = "0x79d3ECb26619B968A68CE9337DfE016aeA471435";

constPongFactory = await hre.ethers.getContractFactory("Pong");

const pong = awaitPongFactory.deploy(mailbox);

const pongAddr = await pong.waitForDeployment();

console.log(`Pong deployed at: ${pongAddr.target}`);

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行部署：

pnpm hardhat run scripts/deploypong.ts --network sapphire-testnet

将 Ping 部署到 Arbitrum Sepolia

1. deployping.ts 在以下位置创建部署脚本 scripts/：

import { ethers } from"hardhat";

asyncfunctionmain() {

// default mailbox on Arbitrum Sepolia

const mailbox = "0x598facE78a4302f11E3de0bee1894Da0b2Cb71F8";

constPingFactory = await ethers.getContractFactory("Ping");

const ping = awaitPingFactory.deploy(mailbox);

const pingAddr = await ping.waitForDeployment();

console.log(`Ping deployed at: ${pingAddr.target}`);

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行部署：

pnpm hardhat run scripts/deployping.ts --network arbitrum-sepolia

部署 ISM 到 Arbitrum Sepolia

1. deployISM.ts 在以下位置创建部署脚本 scripts/：

import { ethers } from"hardhat";

asyncfunctionmain() {

// default mailbox on Arbitrum Sepolia

const mailbox = "0x598facE78a4302f11E3de0bee1894Da0b2Cb71F8";

const trustedRelayer = "0x<your relayer address>";

const trustedRelayerISM = await ethers.deployContract(

    "TrustedRelayerIsm",

    [mailbox, trustedRelayer]

    );

await trustedRelayerISM.waitForDeployment();

console.log(`TrustedRelayerISM deployed to ${trustedRelayerISM.target}`);

}

main().catch((error) => {

    console.error(error);

    process.exitCode = 1;

  });

2. 运行部署：

pnpm hardhat run scripts/deployISM.ts --network arbitrum-sepolia

合约设置

注册路由器 Router

由于我们将路由器包装器用于我们的 Ping Pong 合约，因此我们需要登记对方合约的合约地址。

在 Sapphireestnet 上注册 Router

1. enroll.ts 在文件夹中创建一个名为 /scripts

import { ethers } from"hardhat";

asyncfunctionmain() {

let pingpongArbitrum = "0x<your contract deployed before>";

let pingpongSapphire = "0x<your contract deployed before>";

let arbId = "421614";

const signer = await ethers.provider.getSigner();

const contract = await ethers.getContractAt("Pong", sapphireAddr, signer);

await contract.enrollRemoteRouter(arbId, ethers.zeroPadValue(pingpongArbitrum, 32));

const arbRouter = await contract.routers(arbId);

console.log(`remote router adr for ${arbId}: ${arbRouter}`)

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行部署

pnpm hardhat run scripts/enroll.ts --network sapphire-testnet

在 Arbitrum Sepolia 上注册 Router

1. enroll.ts 在文件夹中创建一个名为 /scripts

import { ethers } from"hardhat";

asyncfunctionmain() {

let pingpongArbitrum = "0x<your contract deployed before>";

let pingpongSapphire = "0x<your contract deployed before>";

let sapphireId = "23295";

const signer = await ethers.provider.getSigner();

const contract = await ethers.getContractAt("Ping", pingpongArbitrum, signer);

await contract.enrollRemoteRouter(sapphireId, ethers.zeroPadValue(pingpongSapphire, 32));

const arbRouter = await contract.routers(sapphireId);

console.log(`remote router adr for ${sapphireId}: ${arbRouter}`)

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行部署

pnpm hardhat run scripts/enroll.ts --network arbitrum-sepolia

在 Arbitrum Sepolia 注册 ISM

1. registerIsm.ts 在文件夹中创建一个名为 /scripts

import { ethers } from"hardhat";

asyncfunctionmain() {

let pingpongArbitrum = "0x<your contract deployed before>";

let ismAddr = "0x<your ISM contract deployed before>";

const signer = await ethers.provider.getSigner();

const contract = await ethers.getContractAt("Ping", pingpongArbitrum, signer);

await contract.setInterchainSecurityModule(ismAddr);

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行部署

pnpm hardhat run scripts/registerIsm.ts --network arbitrum-sepolia

运行中继器

在开始测试 Ping Pong 之前，请确保你在 Arbitrum Sepolia 和 Sapphire Testnet 上运行了一个 Relayer。

运行中继器的最简单方法是使用 Hyperlane CLI。

1. 导出要与 CLI 一起使用的私钥

export HYP_KEY='<YOUR_PRIVATE_KEY>'

2. 启动一个中继器 监视 Arbitrum Sepolia & SapphireTestnet

hyperlane relayer --chains sapphiretestnet,arbitrumsepolia

链配置

Sapphire Testnet 已在 Hyperlane Registry 中注册，如果你自己部署 Hyperlane CoreSapphire Testnet，请确保你拥有 类似于下面的 Hyperlane$HOME/.hyperlane/chains/sapphiretestnet 配置文件。

• metadata.yaml

# yaml-language-server: $schema=../schema.json

blockExplorers:

-apiUrl:https://nexus.oasis.io/v1/

    family:other

    name:OasisExplorer

    url:https://explorer.oasis.io/testnet/sapphire

chainId:23295

displayName:SapphireTestnet

domainId:23295

isTestnet:true

name:sapphiretestnet

nativeToken:

decimals:18

name:TEST

symbol:TEST

protocol:ethereum

rpcUrls:

-http:https://testnet.sapphire.oasis.io

technicalStack: other

• addresses.yaml

domainRoutingIsmFactory: "0x3497967f8E5041f486eC559E6B760d8f051A034C"

interchainAccountIsm:"0xD84DE931A0EDA06Af3944a4e9933c24f3B56DCaC"

interchainAccountRouter:"0xFdca43771912CE5F5B4D869B0c05df0b6eF8aEFc"

mailbox:"0x79d3ECb26619B968A68CE9337DfE016aeA471435"

proxyAdmin:"0x5Ed8004e3352df333901b0B2E98Bd98C3B4AA59A"

staticAggregationHookFactory:"0x212c232Ee07E187CF9b4497A30A3a4D034aAC4D6"

staticAggregationIsmFactory:"0xE25A539AdCa1Aac56549997f2bB88272c5D9498c"

staticMerkleRootMultisigIsmFactory:"0x9851EC4C62943E9974370E87E93CE552abE7705E"

staticMerkleRootWeightedMultisigIsmFactory:"0x688dE6d0aBcb60a711f149c274014c865446b49D"

staticMessageIdMultisigIsmFactory:"0xFE0937b1369Bbba59211c4119B91984FF450ccf1"

staticMessageIdWeightedMultisigIsmFactory:"0x1de05675c8cd512A30c17Ea0a3491d74eF290994"

testRecipient:"0x7bf548104F8f500C563Aa6DC7FbF3b1ad93E4E03"

validatorAnnounce: "0xB119f96a106919489b6495128f30e7088e55B05c"

对于更复杂的验证器和中继器设置，请查看 Hyperlane 的 本地代理指南 或更适合生产的 代理操作员指南。

执行乒乓球

要执行，您将调用 Ping.sol 合约的 sendPing 函数。

在示例中，demo-opl 您可以使用提供的 send-ping 任务，也可以使用以下脚本：

1. sendping.ts 在文件夹中创建一个名为 /scripts

import { ethers } from"hardhat";

asyncfunctionmain() {

const destChainId = "23295";

const message = "Hello OPL"

const pingpongArbitrum = "0x<your pingpong contract deployed on arbitrum sepolia"

const signer = await ethers.provider.getSigner();

const contract = await ethers.getContractAt("Ping", pingpongArbitrum, signer);

console.log("Calculating fee...");

let fee = await contract.quoteDispatch(

      destChainId,

      hre.ethers.toUtf8Bytes(message));

console.log(`Fee: ${hre.ethers.formatEther(fee)} ETH`);

console.log("Sending message...");

const tx = await contract.sendPing(destChainId, message, {value: fee});

await tx.wait();

console.log("Message sent");

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行脚本

pnpm hardhat run scripts/sendping.ts --network arbitrum-sepolia

验证乒乓

验证跨链消息传递的最简单方法是检查区块链浏览器并检查已部署 Ping 合约上的交易。

如果您想直接监视事件，可以使用以下脚本：

1. verifyping.ts 在文件夹中创建一个名为 /scripts

import { ethers } from"hardhat";

asyncfunctionmain() {

const contractAddr = "0x<your deployed ping contract on arbitrum sepolia>"

const signer = await ethers.provider.getSigner();

const contract = await ethers.getContractAt("Ping", contractAddr, signer);

const spinner = ['-', '\\', '|', '/'];

let spinnerIndex = 0;

const interval = setInterval(() => {

      process.stdout.write(`\rListing for event... ${spinner[spinnerIndex]}`);

      current = (spinnerIndex + 1) % spinner.length;

  }, 150);

let events;

do {

    const block = await ethers.provider.getBlockNumber();

    events = await contract.queryFilter('ReceivedPing', block - 10, 'latest');

    if (events.length === 0) {

      awaitnewPromise(resolve =>setTimeout(resolve, 60 * 1000));

    }

  } while (events.length === 0);

clearInterval(interval);

  process.stdout.write(`\r`);

  process.stdout.clearLine(0);

const parsedEvent = contract.interface.parseLog(events[0]);

const message = parsedEvent?.args?.message;

console.log(`Message received with: ${message}`);

}

main().catch((error) => {

console.error(error);

  process.exitCode = 1;

});

2. 运行脚本

pnpm hardhat run scripts/verifyping.ts --network sapphire-testnet

故障排除

中继器不中继消息

查看：

• enrollRemoteRouter 您已通过以下方式注册了对面的路由器合约：ping.routers(oppositeChainId)

• Arbitrum Sepolia 您已通过调用以下方式在 Ping 合约上设置了自定义 ISMping.interchainSecurityModule

• 中继器地址与受信任的 ISM 配置相匹配。

无法验证消息

查看：

• 您的 Hardhat RPC 允许历史事件查询。

• 如果有必要，请使用专用的 RPC 提供程序（例如 Alchemy）。
